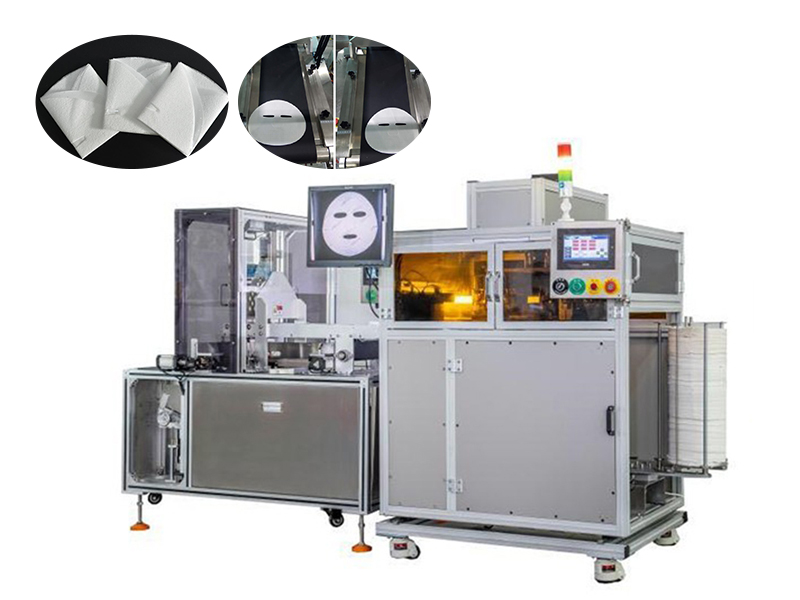

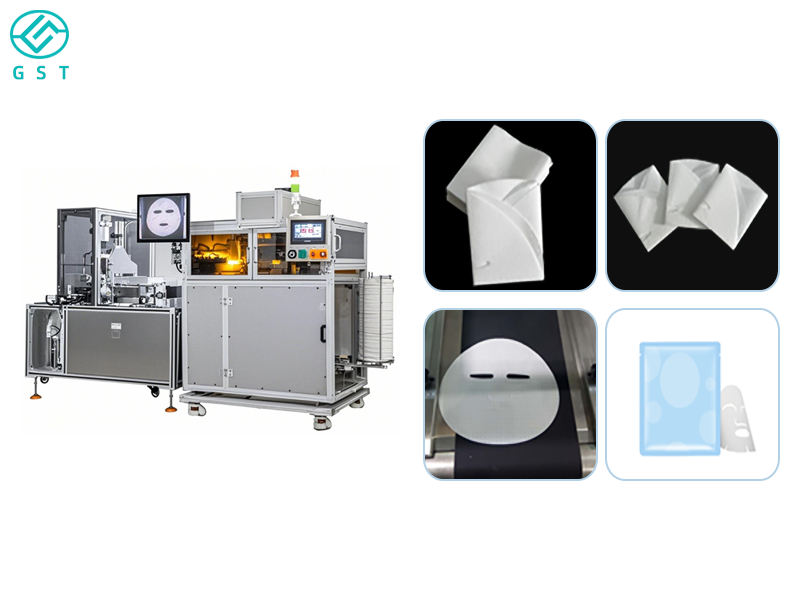

The automatic mask folding machine is a highly efficient automated device specifically designed for the folding process of facial mask products in the cosmetics industry. This equipment integrates automatic feeding, precision folding, positioning adjustment, and conveying discharge functions, achieving fully automated processing from flat film to folded film in the pre-packaging stage of facial masks, significantly improving production cycle time and product quality consistency.

　　Automatic Feeding and Positioning System: The equipment is equipped with an automatic film conveyor belt and positioning device. Mask strips automatically enter the folding station, eliminating the need for manual placement, saving manpower and improving efficiency.

　　High-Precision Folding Action: Utilizing servo drive control of the folding mechanism, it can achieve various folding methods such as single folds, multi-folds, and overlapping folds. The folded edges are neat and the positioning is precise, adapting to different mask sizes and packaging formats.

　　Flexible Specification Switching: Supports rapid adjustment of parameters such as fold width, number of folds, and film length. When changing models, only a few molds need to be replaced or parameters adjusted, adapting to the production needs of multiple models, small batches, and multiple varieties.

　　Automated Conveying and Output System: After folding, the film is conveyed along a chain track or conveyor belt to the next workstation (such as bagging, sealing, or labeling), realizing integrated "folding-conveying" production and shortening process connection time.

　　Superior Structure and Easy Maintenance: The main body of the equipment is constructed of high-quality aluminum alloy profiles or stainless steel, with key components dustproof, dirt-proof, and easy to clean. Modular design makes maintenance, changeover, and cleaning more convenient.

　　Intelligent Control and Convenient Operation: The built-in PLC control system, coupled with a touchscreen human-machine interface, provides intuitive and simple operation. Multiple folding configurations can be stored for quick recall, and it also features fault alarms, operation monitoring, and statistical functions.

　　Technical parameters:

　　Model Number: GST-SWYP009A

　　Packing speed: 35-50 bags/minute

　　Packaging size: standard: bag width 105-160; bag length 150-225

　　Electricity: 220V 50Hz

　　Working air pressure: 0.4-0.6Mpa

　　Machine size ：1500×900×1550mm

　　Net weight ：350kg

　　Customized Support: Yes
