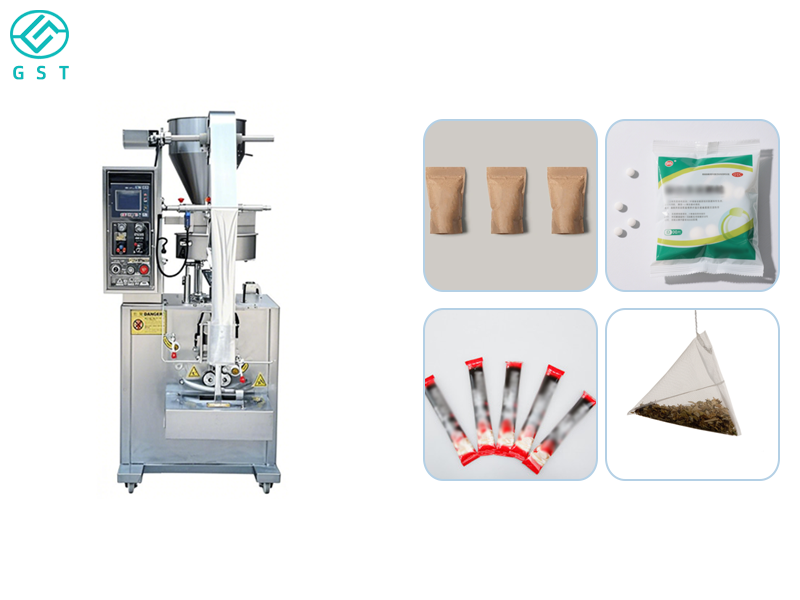

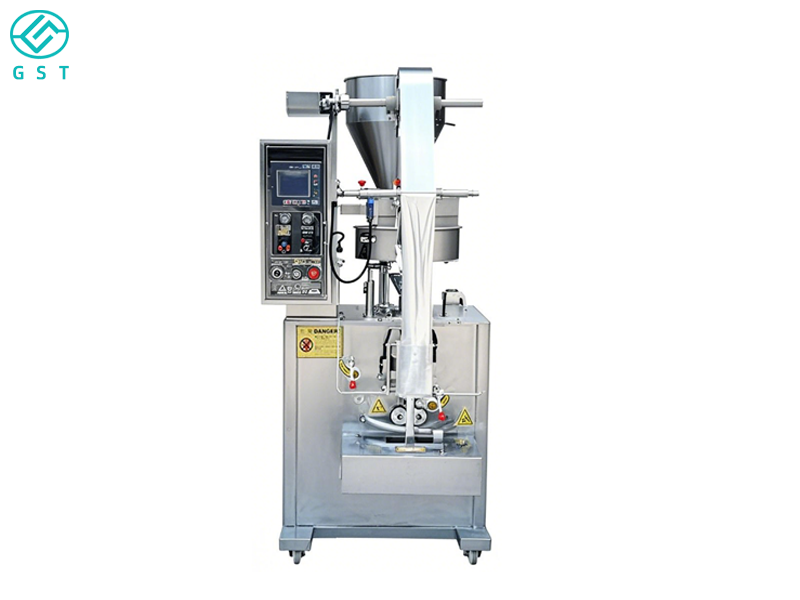

The automatic granule filling machine is a highly efficient, automated quantitative packaging system designed for granular materials with good flowability, such as granules, vitamin granules, food granules, chemical granules, and daily chemical granules. It integrates automatic loading, vibratory feeding, metered filling, bag/bottle delivery, and inspection and rejection. It is suitable for medium to large-volume production, helping companies increase production capacity, reduce labor costs, and improve packaging accuracy.

　　Core Functions and Technical Highlights:

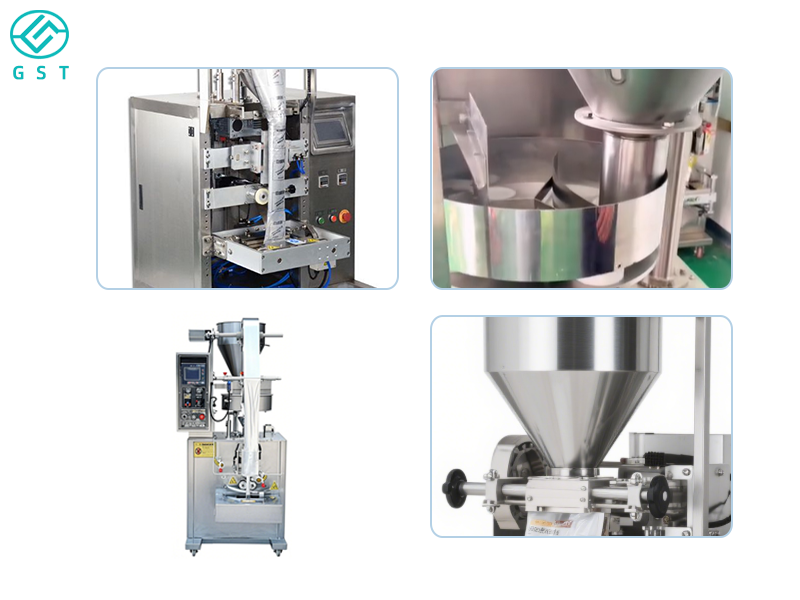

　　High-precision metering control: The machine utilizes a vibratory plate feeding system or a screw conveyor feeding system, coupled with an electronic weighing module or a hopper metering module, to accurately control the weight or number of granules per bag/bottle, ensuring minimal filling errors.

　　Fully automated process: From granule loading → feeding → metered filling → bottle capping/bag sealing → granule inspection → discharge, the entire process is automated, reducing manual intervention and ensuring more stable and faster production.

　　Modular Design: The machine offers a flexible structure with optional configurations such as a multi-station filling head, vibrating plate or feeding system, and weighing and detection modules, allowing for customization based on material specifications, filling volume, and container shape.

　　Adaptable to a variety of specifications and scenarios: It can accommodate granular materials, bottles, or bags, and can quickly switch between filling volume ranges and container sizes, making it suitable for high-variety, small-batch production environments.

　　Intelligent Detection and Rejection: Equipped with photoelectric or weighing detection systems, it can instantly identify empty containers, insufficient granules, or packaging anomalies, automatically rejecting defective products to ensure a high pass rate.

　　Clean, safe, and reliable materials: Material-contacting components are made of food-grade/pharmaceutical-grade stainless steel (such as 304 or 316L), ensuring an easy-to-clean structure that meets clean production requirements.

　　Technical parameters:

　　Model Number: GST-SWYP008A

　　Specification: length 40 width 70 height 130cm

　　Weight: 60kg

　　Speed: 8-20 packages/minute

　　Voltage: 180-230/50HZ

　　Total power: 220W

　　Customized Support: Yes
