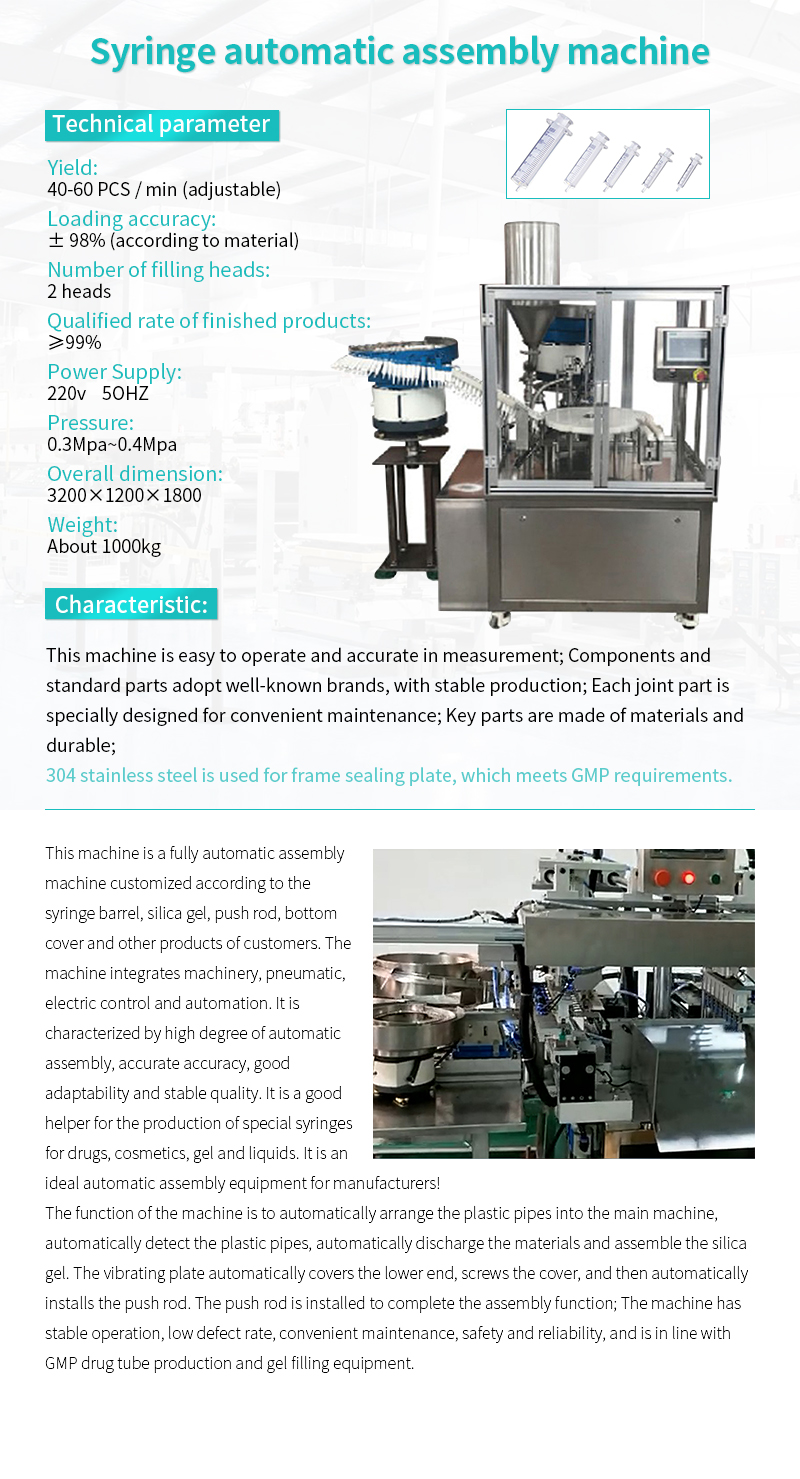

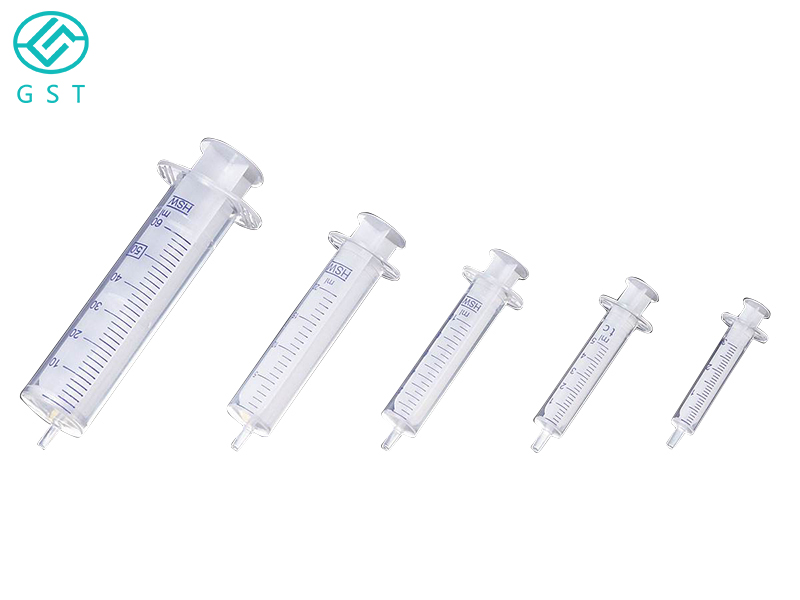

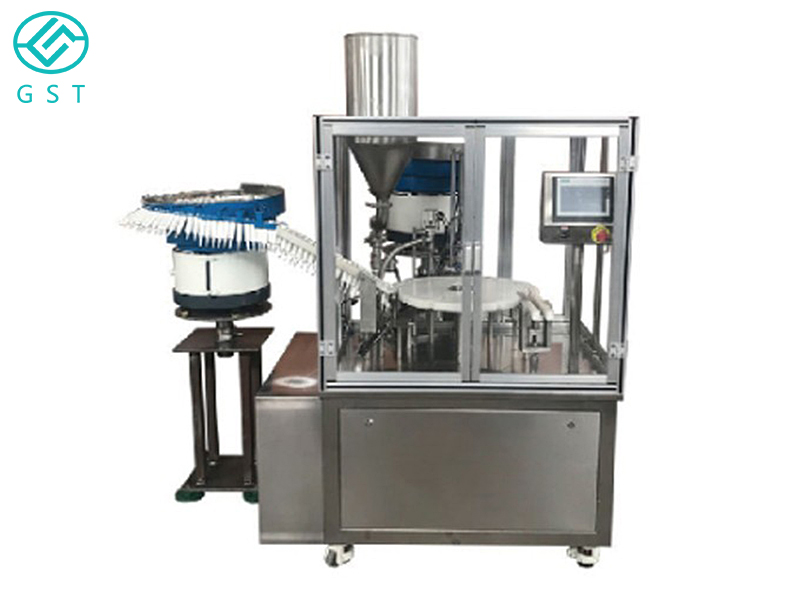

Product description.This machine is a fully automatic assembly machine customized to the customer's syringe barrel, silicone, push rod and bottom cap. The machine integrates mechanical, pneumatic, electric control and automatic as one, with high degree of automatic assembly, accurate precision, good adaptability and stable quality. It is a good helper in the production of syringes for pharmaceuticals, cosmetics, gels and liquids, and the idealized automatic assembly equipment for manufacturers!

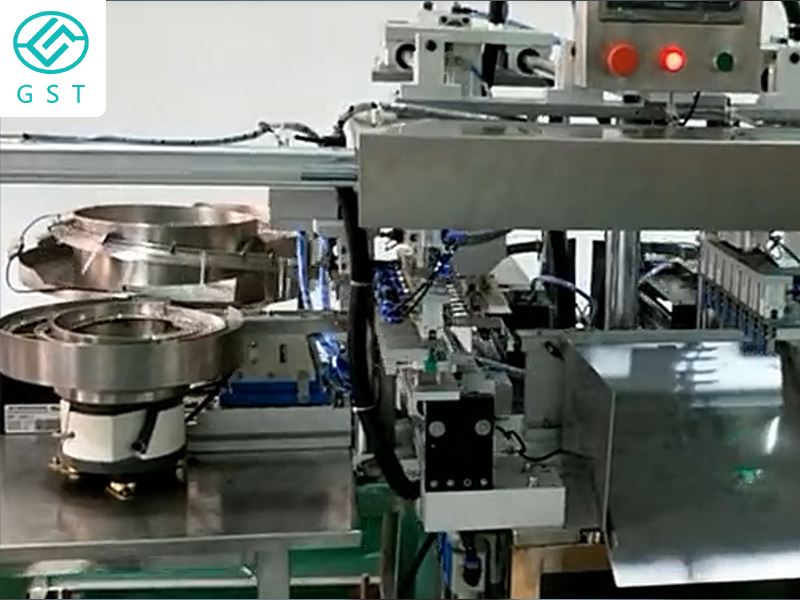

　　Machine function is to automatically arrange the plastic tube into the main machine, automatic detection of plastic tube, automatic discharge silicone assembly, vibration plate automatically under the end cap, screw cap, and then automatically loaded into the pusher, the pusher is loaded to complete the assembly function; the machine is stable operation, low defect rate, easy maintenance, safe and reliable, in line with GMP drug tube production, gel filling equipment.

　　Product features.

　　1)The machine is easy and simple to operate and accurate to assemble;

　　2)The components and standard parts are made of famous brand, stable production;

　　3) Each joint part is specially designed for easy maintenance;

　　4)The key parts are made of special materials, durable;

　　5) The frame cover plate is made of 304 stainless steel, which meets the requirements of GMP.

　　Technical parameters.

　　1) Output: 40-60 pieces/min (adjustable);

　　2) Filling accuracy: ±98% (according to the material differentiation);

　　3)Number of filling heads: 2 heads;

　　4)Qualified rate of finished product: ≥99%;

　　5)Power supply: 220V, 50Hz;

　　6)Air pressure: 0.3Mpa～0.4Mpa;

　　7)Dimension: 3200*1200*1800;

　　8)Weight: about 1000KG.
