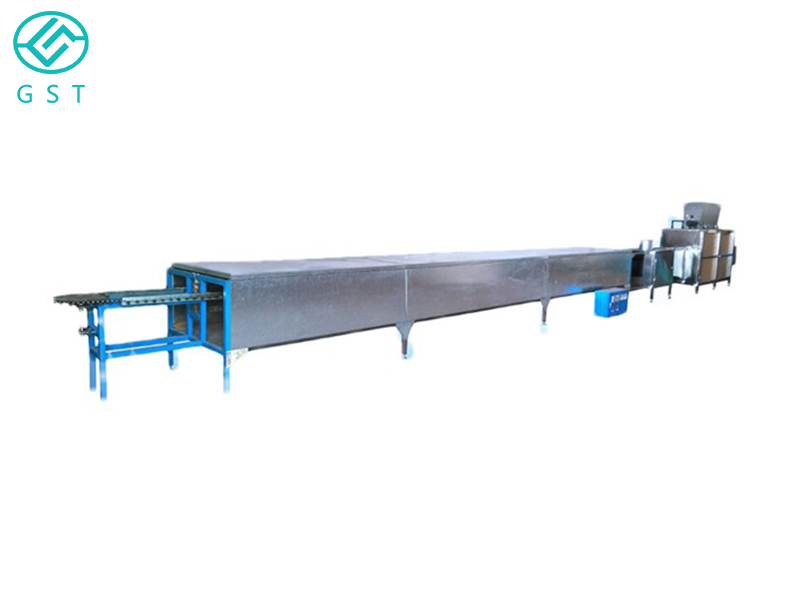

Machine description: this machine is professional for plastic flocking hanger factory customer requirements and research and development, machine shape all use square steel welding frame, sealing plate using stainless steel and cold plate baking paint with, internal and then add acrylic transparent board isolation, etc., solve the original large dust and toxic gas workshop, Europe and the United States certification can pass the qualified factory, eliminate the original static electricity flammable danger, young people are willing to work in the standard workshop.
Machine description: this machine is professional for plastic flocking hanger factory customer requirements and research and development, machine shape all use square steel welding frame, sealing plate using stainless steel and cold plate baking paint with, internal and then add acrylic transparent board isolation, etc., solve the original large dust and toxic gas workshop, Europe and the United States certification can pass the qualified factory, eliminate the original static electricity flammable danger, young people are willing to work in the standard workshop.
Machine internal workpieces are specially treated, high machine efficiency, safety, reliability, local bits are used safety shield, generous and beautiful appearance, strong and durable, corrosion-resistant, the movement part all use linear module, servo motor and control system, solve the original insert attached hook multi-channel process, direct positive hook bubble glue flocking, greatly reduce personnel production, improve efficiency, enhance profit margin, greatly improve competitiveness .

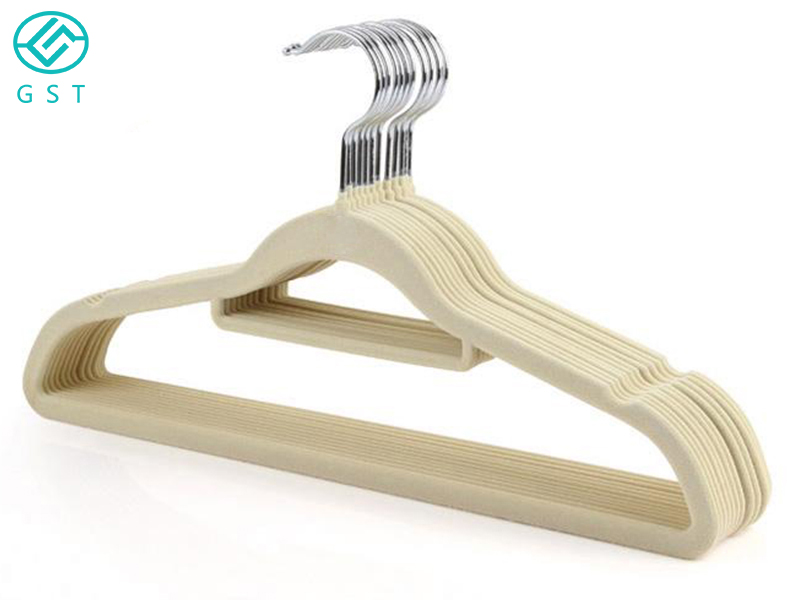

The function of the machine is: artificially hang the hanger on the sliding rod, the machine will automatically take the hanger over for glue soaking, and then shake off the excess glue, the surface of the hook will not have glue traces; the height of the hanger glue soaking is consistent, and the height can be set according to the customer's requirements, when the glue is shaken off the surface of the hanger glue is even, there will not be no glue soaking and the remaining glue is not shaken off clean, resulting in excessive glue flow hanging phenomenon; after shaking off the glue is also After the glue is shaken off, the hanger automatically enters the flocking machine conveyor belt and then automatically enters the flocking box, automatic flocking, and each hanger is arranged in orderly intervals, flocking is even and consistent. If you don't need an oven, you have to hang them manually on a rack to dry, and finish them smoothly according to the required requirements.
Technical parameters.
Machine size: 40m long, 1.5m wide, 2.5m high
Efficiency: 40-50PCS/min
Control: Microcomputer control system
Power source: AC220V 50HZ
Pneumatic pressure: 0.4-0.6MPA
