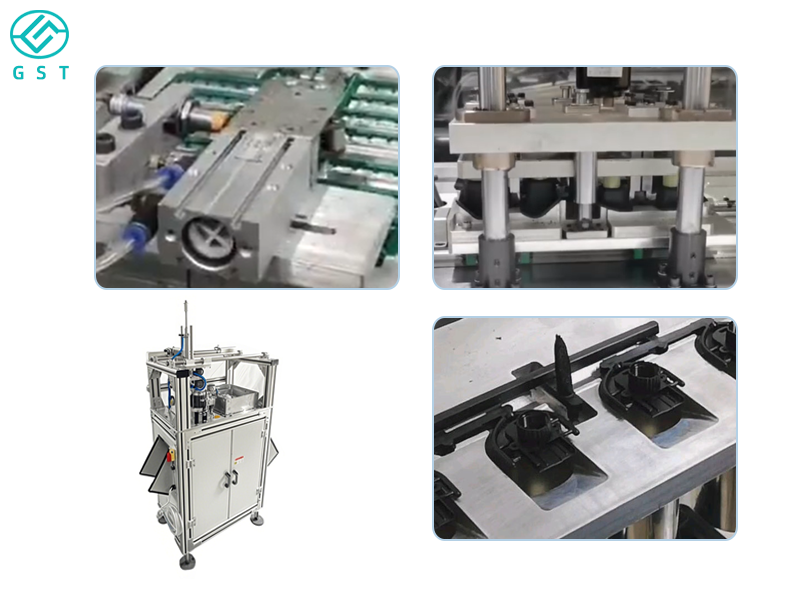

The automatic sprue cutting machine for injection molded parts is a highly efficient automated device designed specifically for automatically separating sprue and gate materials during the injection molding process. This machine integrates feeding, positioning, cutting, and sorting, eliminating the need for manual sprue handling after ejecting plastic parts from the mold. This allows for automated cutting, rejection, and sorting, significantly improving production efficiency, reducing labor costs, and improving quality consistency.

　　Key Functions and Technical Features:

　　Automatic Feeding and Positioning System: After ejection, molded parts automatically enter the machine. A vibrating plate, feed rail, or robotic arm accurately feeds the parts to the cutting table for rapid positioning.

　　High-Speed Cutting Mechanism: Equipped with precision cutting tools/punching mechanisms (such as punches/cylinder-driven molds), the machine can complete sprue removal in record time.

　　Automatic Sorting/Rejection Module: After removal, the machine automatically separates the cut sprue material from qualified parts into separate receiving bins, eliminating the need for manual secondary sorting.

　　Modular Structure, Quick Changeover: The modular design allows for quick replacement of fixtures, cutters, and feed rails, facilitating production transitions for different injection molded part specifications and nozzle types.

　　Intelligent Control and Safety Design: A PLC + human-machine interface controls machine operation, with alarms, safety guards, and material-cut shutdown features ensuring safe and stable operation.

　　Cost Savings and Quality Improvement: Reduces manual labor and intensity, improves cutting consistency, and avoids defective product rates and production fluctuations caused by manual trimming.

　　Technical parameters:

　　Model Number: GST-WJ005A

　　Production Capacities: 20-60 pcs/min (adjustable)

　　Voltage: 220V AC

　　Air pressure: 0.4-0.6MPA.

　　Sze: L600 * W500 * H1500

　　Customized Support: Yes
