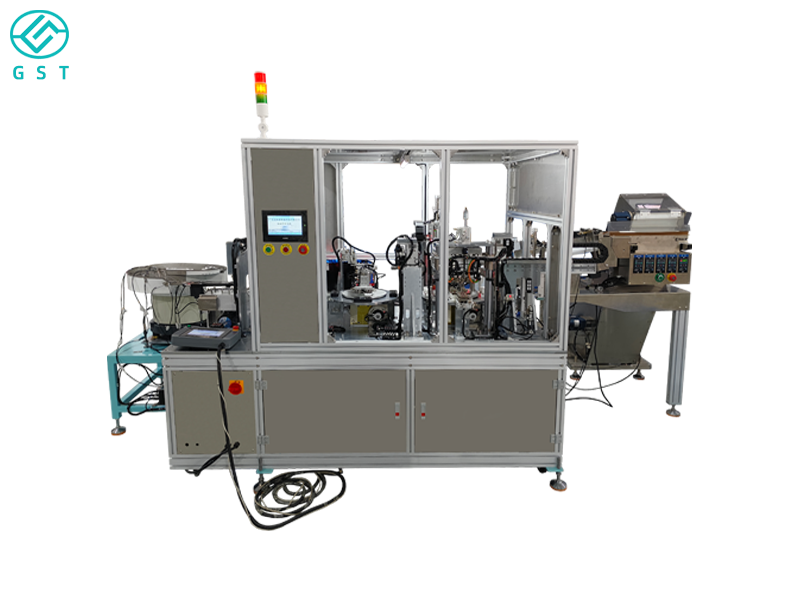

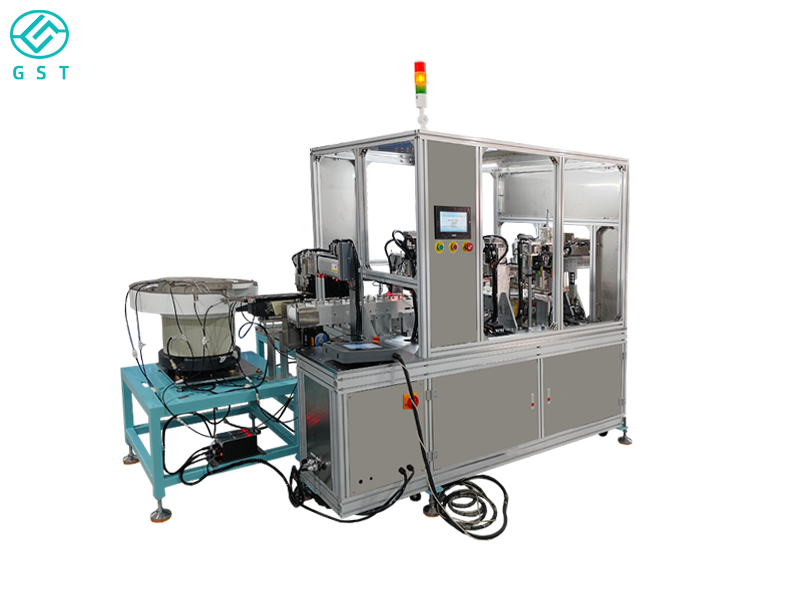

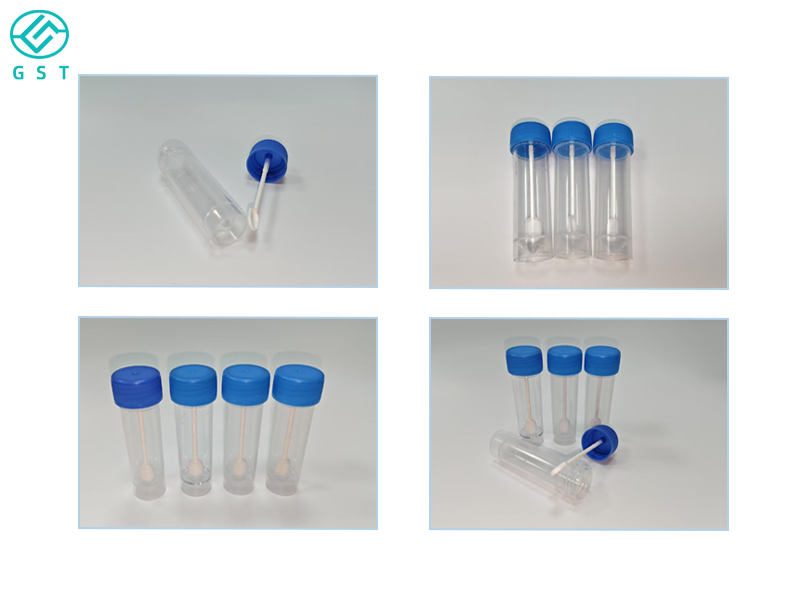

The automatic fecal test tube assembly machine is a highly efficient automated device designed specifically for the in vitro diagnostic (IVD) consumables manufacturing industry, specifically for the automated assembly and production of fecal test tubes. It integrates component loading, tube positioning, plug insertion, cap screwing, visual inspection, and rejection and sorting, enabling continuous, high-speed, and high-precision automated assembly, significantly improving production efficiency and ensuring product consistency.

　　Fully automated assembly: From fecal test tube loading, positioning, sampling rod/core insertion, capping, to inspection and rejection, the machine utilizes PLC control and touchscreen operation, offering a streamlined process and adjustable parameters.

　　Compatible with multiple tube specifications: The machine supports the assembly of different fecal test tube specifications, with quick exchange of molds and fixtures to meet the needs of high-mix, low-volume production.

　　Precise quality control: Equipped with visual inspection or sensor detection, the machine monitors tubes in real time for assembly defects such as missing parts, incorrect insertion, missing caps, and loose caps. Abnormal products are automatically rejected, improving yield.

　　Cleanroom design meets medical consumable standards: The machine body is constructed of easy-to-clean materials such as stainless steel, and its structure is highly enclosed, meeting the cleanliness and dust-proofing requirements of medical consumable production environments.

　　Flexible production line integration: This equipment can be integrated with automated labeling, bagging, and packaging equipment as an upstream assembly module to form a complete automated production line.

　　Equipment Details:

　　Model Number: GST-YBG001A

　　Sizes: L380cm*W270cm*H170cm

　　Weight: 1200kg

　　Power: 2.5kW

　　Production Capacity: 2200 pieces/hour

　　Voltage: 220V

　　Customized Support: Yes
