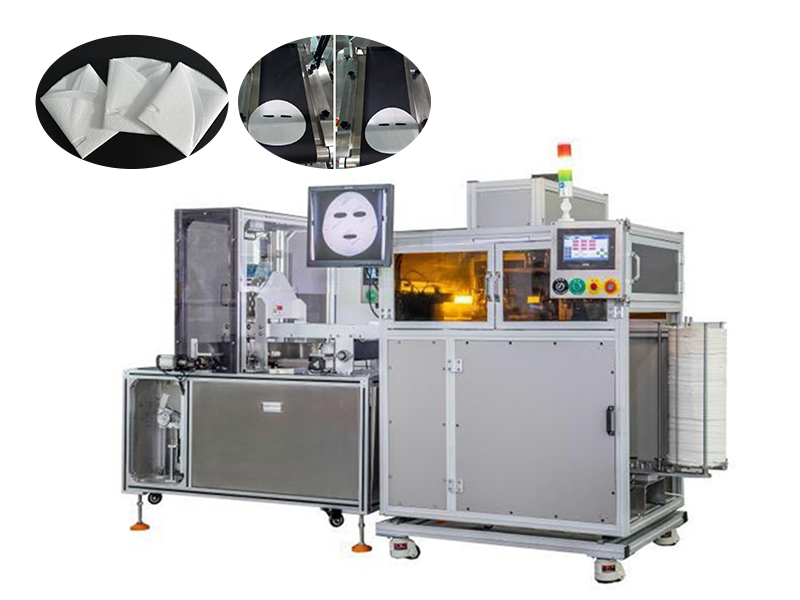

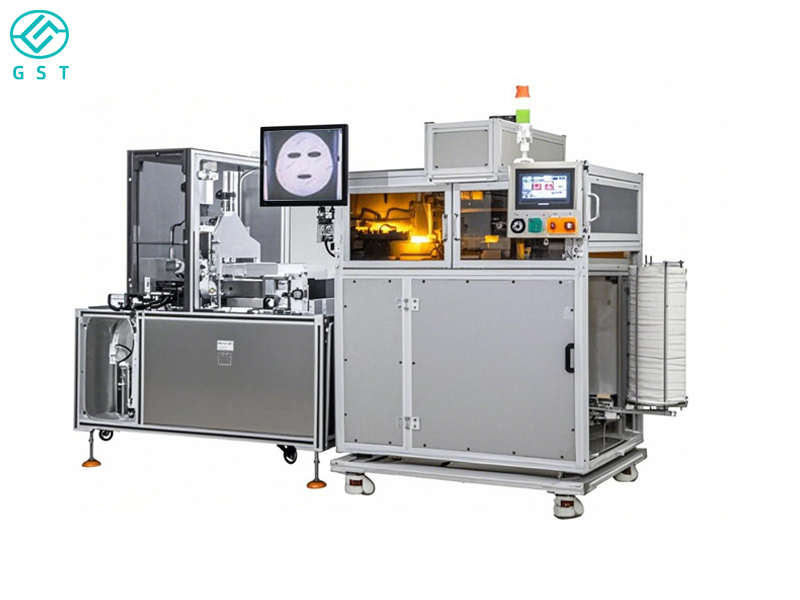

The automatic facial mask folding machine is a highly efficient, automated device designed specifically for the cosmetics facial mask industry. It automatically loads, folds, bags, inspects, and delivers facial mask fabrics. Its fully integrated process helps companies transition from manual to automated and intelligent packaging processes.

　　Key features include:

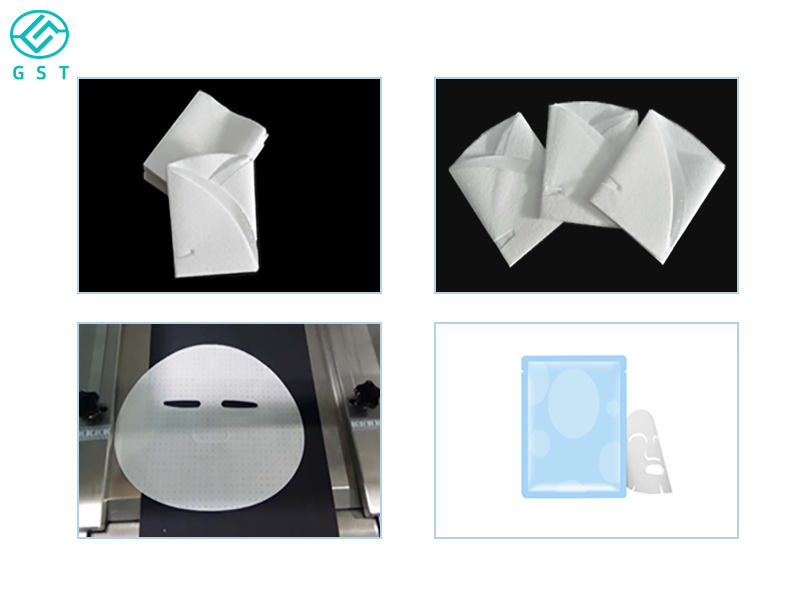

　　Automatic Loading + Fast Folding: The machine utilizes an automatic feeding and folding mechanism, reliably switching between three-fold and four-fold methods. The format change takes just 5 minutes of fine-tuning, eliminating the need for fixture replacement.

　　Automatic Bag Insertion and Material Clamping Detection: Folded facial masks are automatically placed into pre-set bags. Features include bag entry detection and material clamping anomaly alarms, ensuring a stable and orderly packaging process.

　　PLC Integrated Control + Touchscreen Operation: Users can easily configure bag opening width, bag length, folding method, and cycle time, with an intuitive and user-friendly interface.

　　Supports wide/long bag sizes: Standard specifications include bag opening widths of 105-160 mm and bag lengths of 150-225 mm. The device operates at 220V 50Hz, with an operating air pressure of 0.4-0.6MPa. Its dimensions are approximately 1500 × 900 × 1550mm, and its net weight is approximately 350kg.

　　High cycle rate and compact structure: It can process approximately 35-50 bags per minute and is equipped with features such as abnormal shutdown and bag removal/opening detection, improving packaging efficiency and reducing labor costs.

　　Technical parameters:

　　Model Number: GST-SWYP009A

　　Packing speed: 35-50 bags/minute

　　Packaging size: standard: bag width 105-160; bag length 150-225

　　Electricity: 220V 50Hz

　　Working air pressure: 0.4-0.6Mpa

　　Machine size ：1500×900×1550

　　Net weight ：350kg

　　Customized Support: Yes
