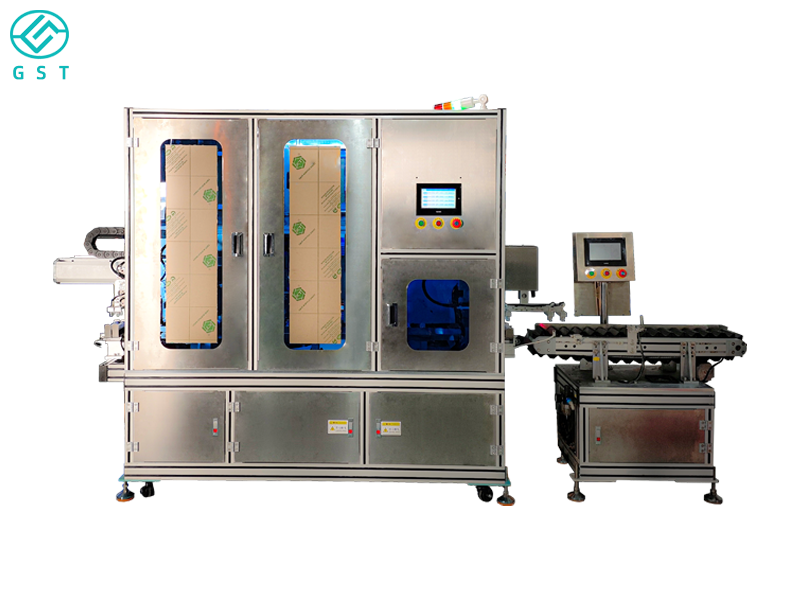

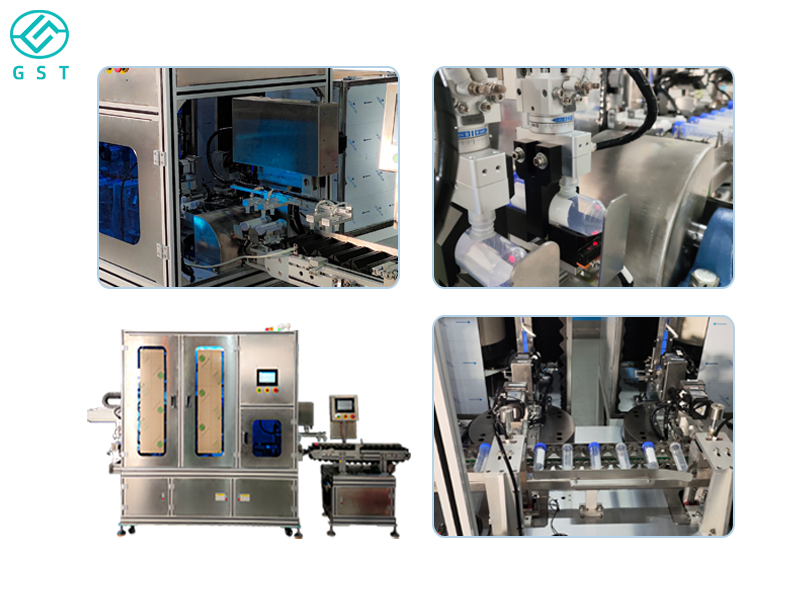

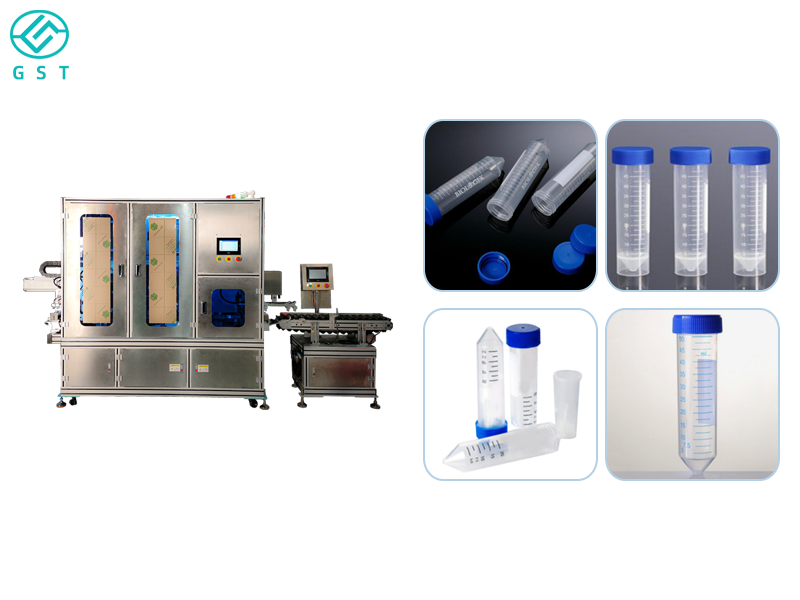

The Centrifuge Tube Automatic Capping Machine is an intelligent capping machine designed specifically for centrifuge tube production lines. It precisely screws caps onto centrifuge tubes, ensuring a tight and consistent seal. This equipment seamlessly integrates with upstream loading and printing modules to form a fully automated production line.

　　Automatic Capping and Directional Feeding: The machine is equipped with a vibrating plate or feeding mechanism to automatically sort caps by direction and transport them to the capping position.

　　Capping Control: A servo motor or pneumatic drive drives the capping mechanism, screwing the caps onto the centrifuge tubes at a set torque, speed, and angle.

　　Torque Control and Inspection: During the capping process, the system monitors torque and angle to ensure each cap is tightened within the specified range. Any abnormal torque or undertightening detected will be automatically marked or rejected.

　　Automatic Rejection and Diversion: Tubes that fail inspection (e.g., uncapped, overly loose, or overtightened) are automatically rejected or diverted to an alternate path to ensure acceptable quality.

　　Intelligent Control System: Utilizing a PLC + HMI control interface, users can set capping parameters (torque, speed, angle), monitor device status, generate alarms, and record data on the touchscreen.

　　High Precision and Consistency: A precision torque control device and detection unit ensure consistent tightening of each centrifuge tube cap, reducing human error.

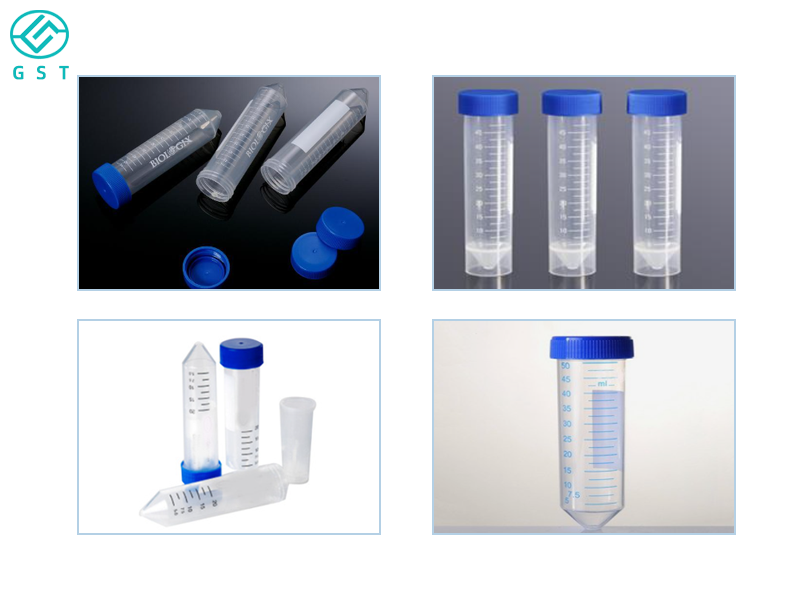

　　Compatible with Multiple Specifications: Supports switching between centrifuge tubes of different sizes (e.g., 1 mL, 2 mL, 5 mL, 15 mL, 50 mL, etc.) by simply replacing the fixture or adjusting parameters.

　　High-Speed and Stable Operation: Suitable for simultaneous operation with assembly lines, it can operate continuously and stably at high production capacity, improving overall production efficiency.

　　Modular Design: Each functional module (capping, capping, detection, and rejection) adopts a modular structure, facilitating maintenance, upgrades, and modifications.

　　Cleanroom Compatibility: The machine body is constructed of stainless steel or corrosion-resistant materials, and key components are sealed, resulting in a compact and easy-to-clean structure suitable for cleanroom production.

　　Data tracking and recording: The system can save the capping parameters and test results of each centrifuge tube to facilitate quality tracking and statistical analysis.

　　Equipment Details:

　　Model Number: GST-LXG101A

　　Sizes: L280cm*W120cm*H190cm

　　Weight: 800kg

　　Power: 4.5KW

　　Production Capacity: 2,500 pieces/hour

　　Voltage: 220V

　　Core Component: Motor

　　Customized Support: Yes
