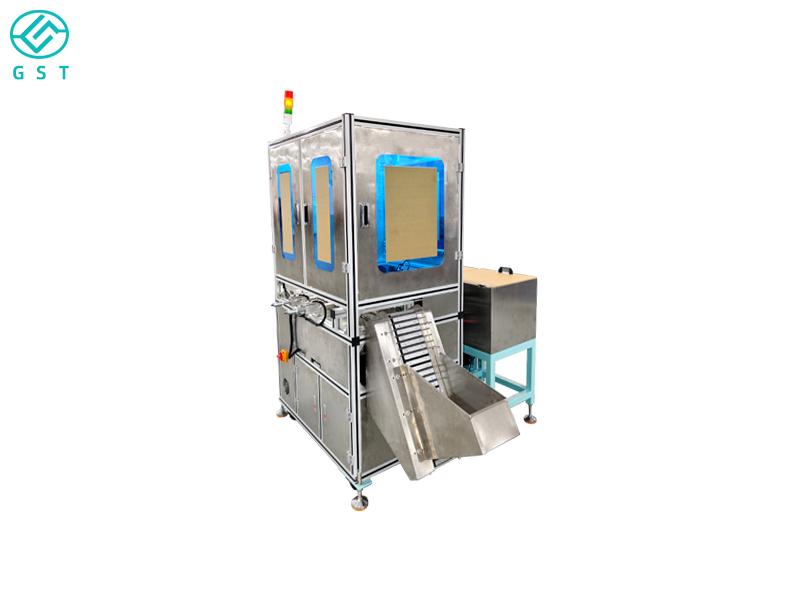

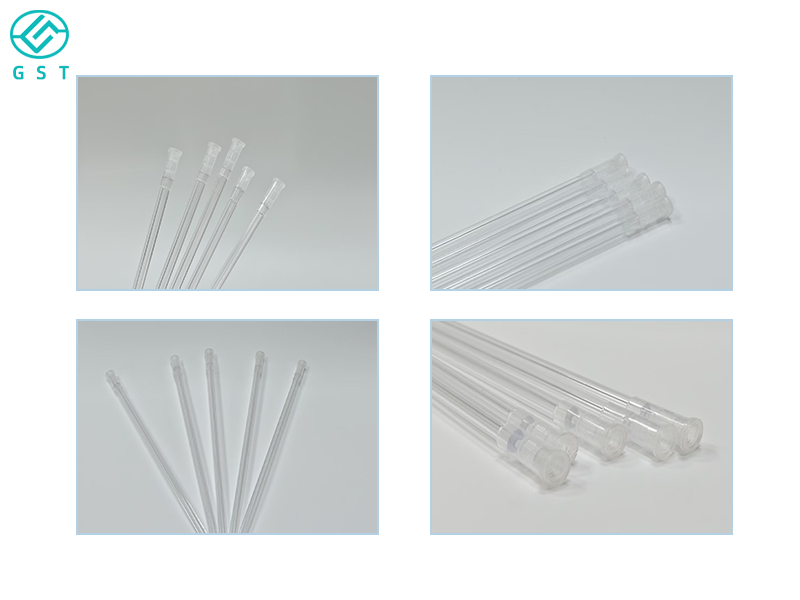

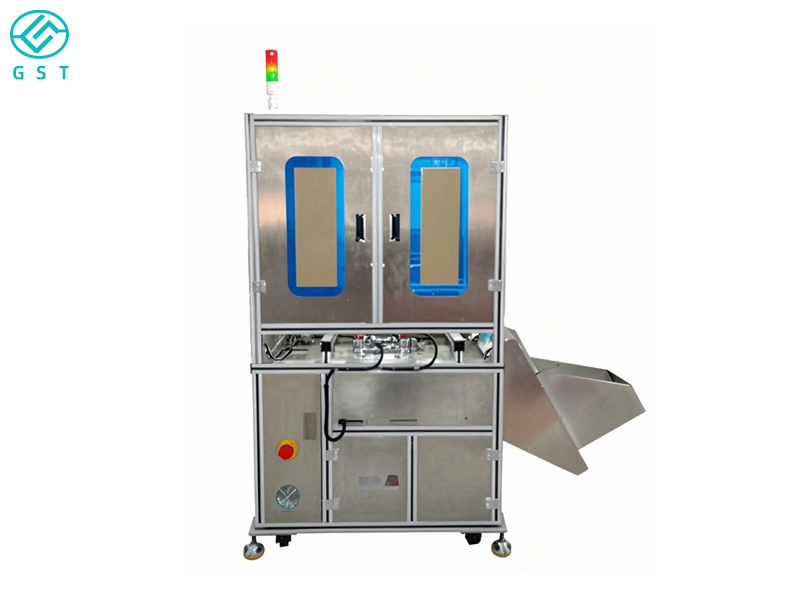

The ESR tube automatic assembly machine is a highly efficient, automated device designed specifically for the medical laboratory consumables industry, used for the precise and automated assembly of ESR tubes and their accessories. This machine integrates loading, alignment, pressing, inspection, and rejection to achieve high-speed, stable, and highly consistent production. It is a key component for modern ESR tube manufacturers to improve productivity and quality.

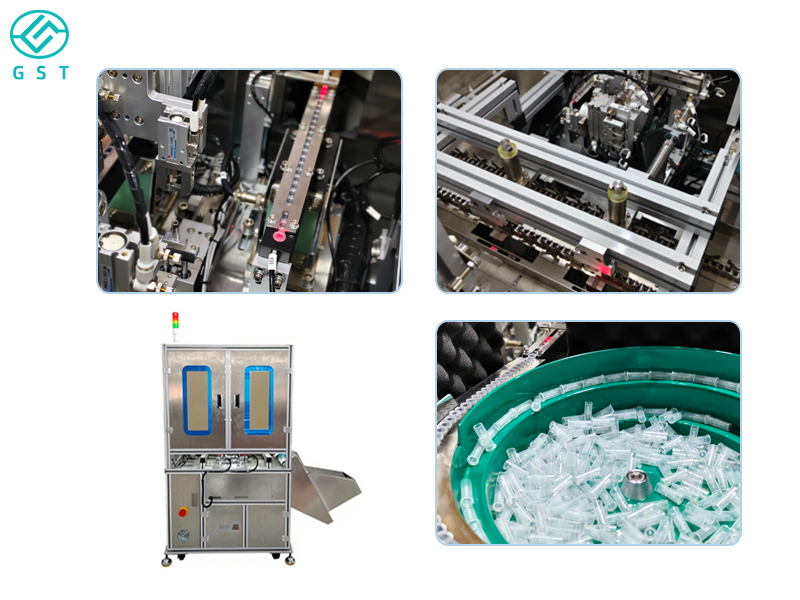

　　Automatic loading and sorting: Vibrating plates, feed mechanisms, or vibratory feeding systems are used to automatically sort and direct components such as tube bodies, liners, and seals, ensuring a stable supply to subsequent workstations.

　　High-precision alignment and assembly: Mechanical fixtures, guides, and vision or photoelectric positioning systems ensure precise alignment of components. Assembly methods such as pressing or bonding are selected based on the product structure to ensure accurate assembly and reliable fastening.

　　In-line inspection and rejection: The machine is equipped with an in-line inspection module that detects seals, missing components, and assembly deviations after assembly, automatically rejecting any unqualified products.

　　Adjustable Parameters and Multi-Specification Compatibility: The machine supports rapid switching for different ESR tube specifications (such as lengths, diameters, and wall thicknesses), with adjustable fixtures, assembly positions, and program parameters.

　　Modular Design: Each functional module (loading, assembly, inspection, and rejection) utilizes a modular design for easy maintenance, upgrades, and replacement.

　　Control System and Operator Interface: Equipped with a PLC control and human-machine interface (HMI), users can set production parameters, monitor equipment status, view alarms, and debug processes via a touchscreen.

　　Clean Design and Material Selection: Parts that come into contact with ESR tubes are constructed from stainless steel or highly corrosion-resistant materials, resulting in a compact, easy-to-clean structure that meets clean production environment requirements.

　　Strong Line Compatibility: This automated assembly machine seamlessly integrates with front-end tube cutting, chip blowing, printing, welding equipment, and back-end labeling, cartoning, and packaging equipment to form a complete automated ESR tube production line.

　　By using this automated assembly machine for ESR tubes, customers can significantly improve production efficiency, reduce labor costs, and increase assembly consistency and product yield, helping companies maintain stable quality and high productivity in the face of fierce market competition.

　　Equipment Details:

　　Model Number: GST-XCG001A

　　Sizes: L180cm*W150cm*H190cm

　　Weight: 500kg

　　Power: 1KW

　　Production Capacity: 1,400 PCS/hour

　　Voltage: 220V/50Hz

　　Core Component: Motor

　　Customized Support: Yes
