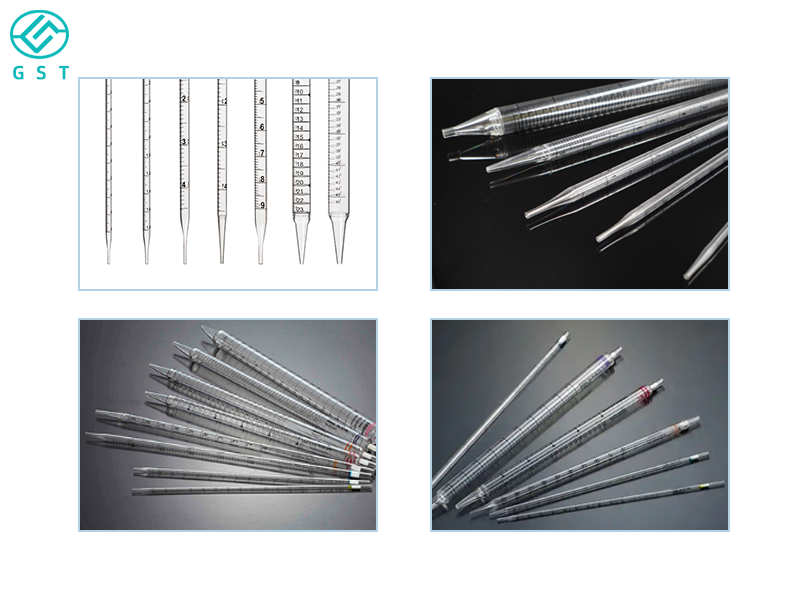

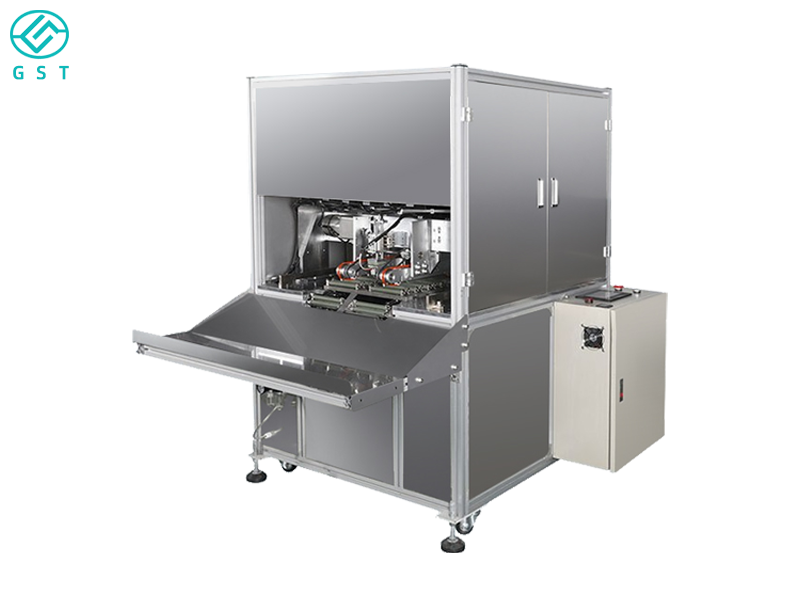

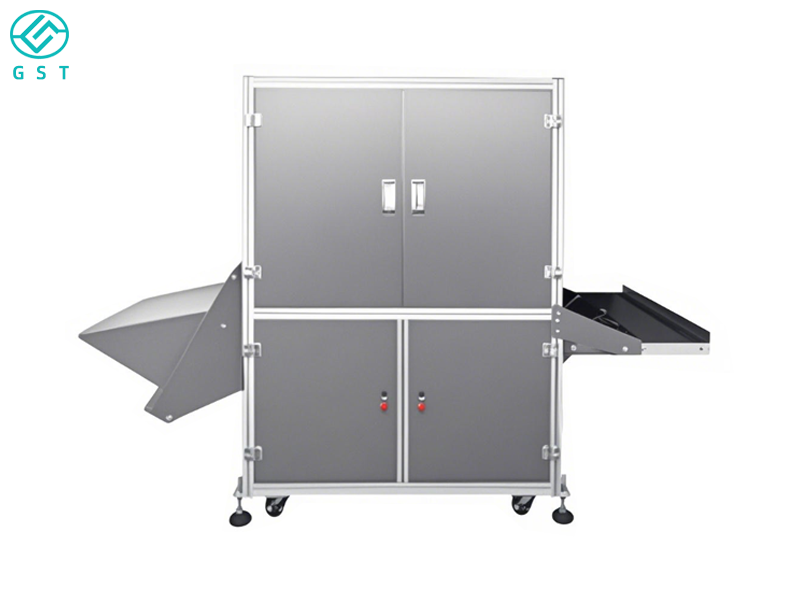

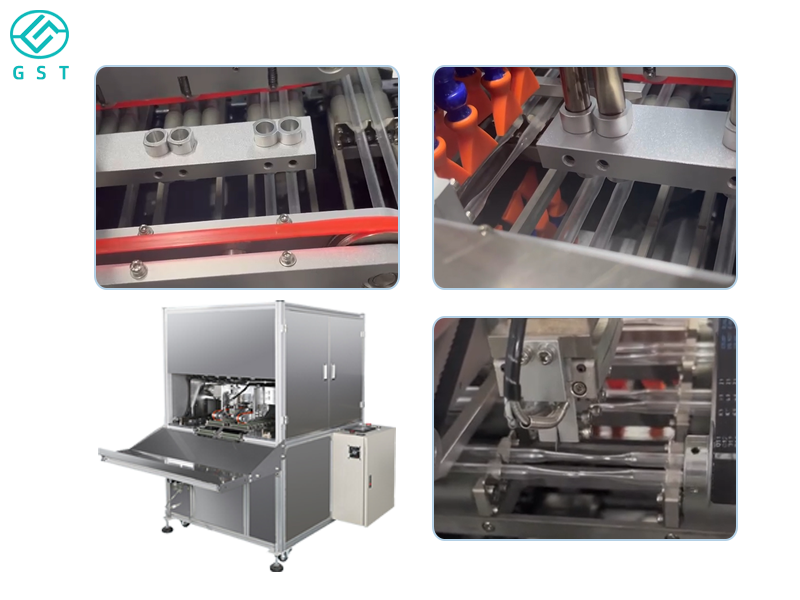

The automatic pipette stretch-forming machine is a highly efficient, automated machine designed specifically for plastic and PS tubing and pipettes. It performs the positioning, heating, stretching, cutting, and forming processes for pipettes. Its automated mechanical structure enables a continuous process from heating and stretching to cutting, cooling, and unloading, eliminating the need for manual intervention.

　　Automatic Loading and Positioning: The machine features an automatic feeding function, accurately feeding the pipette to be stretched into the stretching station for positioning.

　　Heating and Stretching: The heating module softens the pipette and then performs a controlled stretching process to achieve the desired length and wall shape.

　　Automatic Cutting and Forming: After stretching, the machine automatically cuts and forms the pipe, ensuring consistent dimensions.

　　Cooling and Unloading: After forming, the pipe is cooled to ensure a stable shape before being automatically unloaded from the production line.

　　High Efficiency and Consistency: The automated process ensures consistent performance for each pipe during stretching, significantly reducing labor and error rates.

　　Stability and Reliability: The rational structural design and precise process control ensure long-term, continuous operation.

　　Modularity and compatibility: Simply replace fixtures or adjust parameters to accommodate different tubing specifications, flexibly meeting production needs.

　　Strong line integration capabilities: Seamlessly connect with upstream equipment such as tube cutting, chip blowing, welding, printing, and testing to create a complete automated pipette production line.

　　Technical parameters:

　　Equipment model: GST-YYG102A

　　Pipette capacity: 1-10ml (1 device can only process a pipette of one capacity)

　　Production efficiency: 3000-3600 pieces/hour

　　Equipment size: length 160 * width 100 * height 170cm

　　Equipment weight: about 750KG

　　power (output): 3KW

　　Customized Support: Yes
