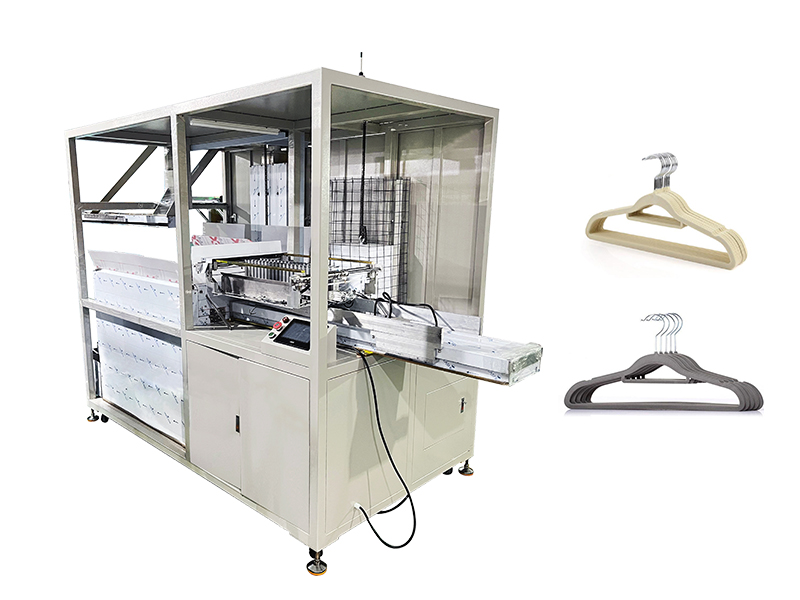

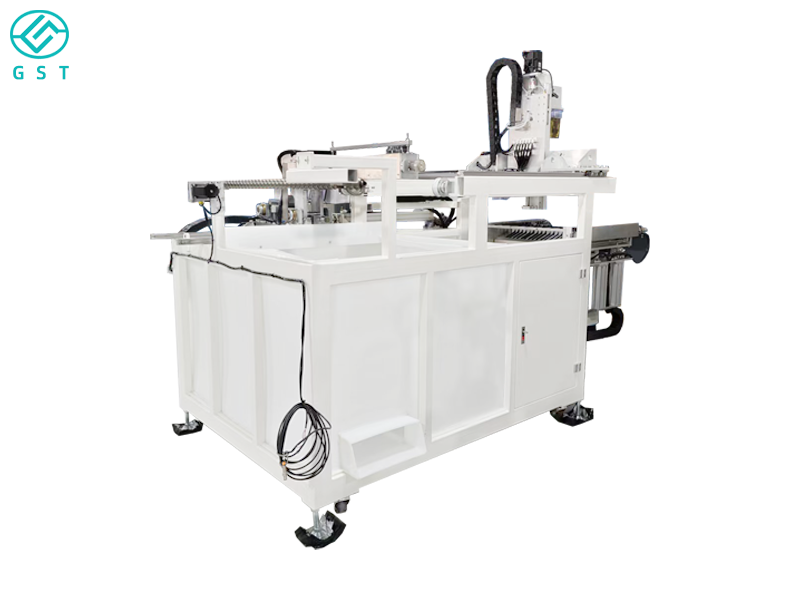

The automatic gluing machine for hangers is a highly efficient, automated gluing solution specifically developed for hanger manufacturers. Utilizing an advanced mechanical structure and intelligent control system, this machine automatically completes the gluing, coating, and evenly distributing processes in a single process, significantly improving hanger production efficiency and ensuring consistent finished product quality. It is an ideal alternative to traditional manual gluing.

　　This machine utilizes a PLC intelligent control system, coupled with a high-precision servo drive and a stable glue supply mechanism, to automatically position hangers, accurately gluing, and automatically retracting and releasing them. The glue application is uniform and adjustable, minimizing glue waste. The user-friendly interface allows for quick parameter switching based on different hanger specifications, meeting the gluing needs of a variety of hanger products, including plastic, wooden, and flocked hangers.

　　The machine's main structure is constructed of high-strength steel and corrosion-resistant materials, ensuring stability and durability for long-term, high-load production. Key components are easily disassembled and cleaned, ensuring low maintenance costs. The compact size and minimal footprint make it suitable for installation on assembly lines in large, medium, and small factories.

　　Core Advantages:

　　Fully automated operation: Automatic positioning, glue application, and conveying are integrated, significantly reducing labor costs.

　　High precision and efficiency: Fast glue application and consistent glue application ensure the aesthetics and quality of the finished product.

　　Multiple-specification compatibility: Quickly adapt to different hanger shapes and sizes, flexibly meeting diverse market demands.

　　Energy-saving and environmentally friendly: Precise glue application reduces glue waste, helping to lower production costs and environmental impact.

　　Intelligent control: A touchscreen interface with adjustable parameters ensures simple operation and is easy to learn and use.

　　This product is widely used in manufacturers of various types of plastic hangers, wooden hangers, metal hangers, and flocked hangers, and is particularly suitable for factories that demand high-quality, high-capacity, and standardized production.

　　Technical parameters:

　　1. Vertical structure, PLC control, simple operation interface, language Chinese.

　　2. Adopt guide rail guide, smooth running, long service life.

　　3. Imported servo motors, uniform speed, to ensure stable positioning.

　　4. The frame is welded and painted with square pass, and the appearance is sealed with a door, which makes the machine beautiful and generous.

　　5. Glue bucket using stainless steel welding, anticorrosion, automatic glue, automatic control.

　　6. The whole machine is equipped with safety guards, easy to use and safe.

　　7. Cylinders, solenoid valves using Taiwan Yadek, electrical appliances are used Omron.

　　8. Voltage: 220V AC Air pressure: 0.4-0.6MPA.

　　9.Working efficiency: 2000-2500pcs/ H,

　　10.Size: L2600*W1200*H2000.

　　11.Model number: GST-WJ007A
