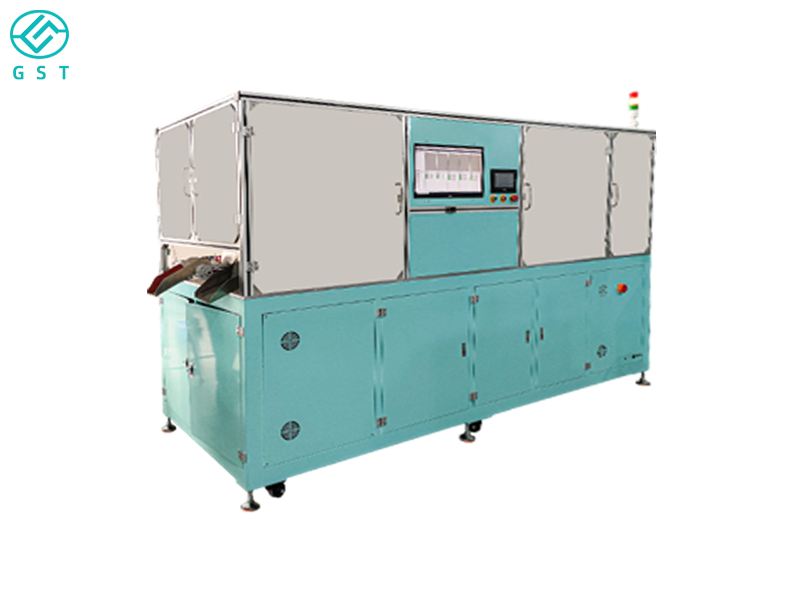

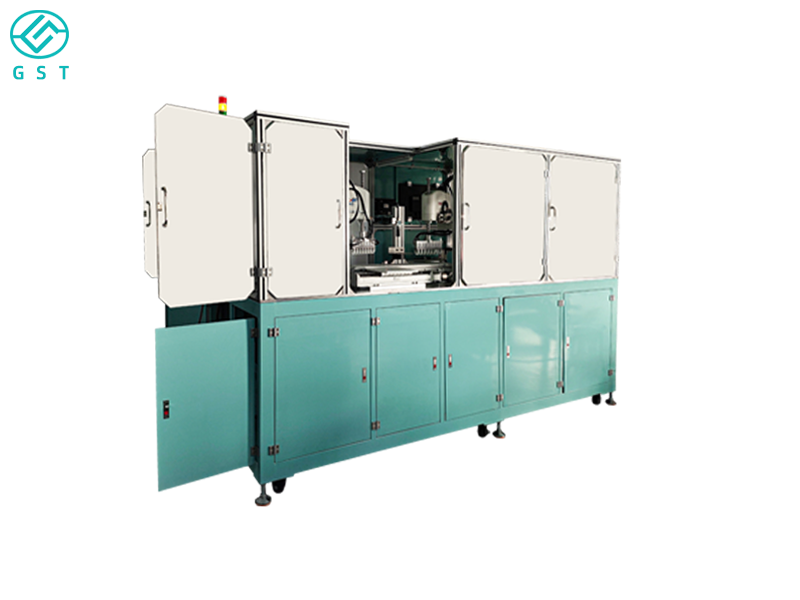

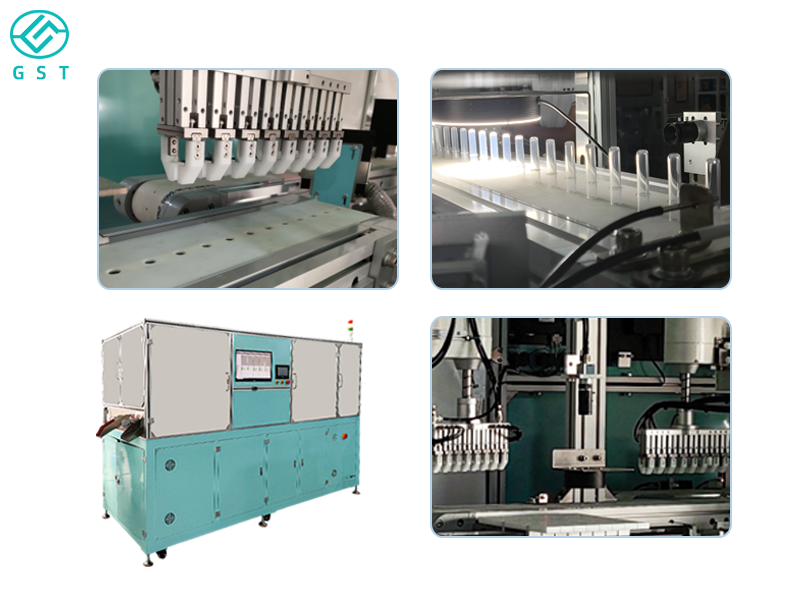

The automated visual inspection system for cuvettes is a highly efficient quality inspection device designed specifically for manufacturers of medical testing consumables. It performs comprehensive automated inspections of cuvettes for appearance, dimensions, defects, and more, both before and after production and packaging. Integrating automatic loading, precise positioning, high-definition visual inspection, and automatic rejection, the system significantly improves cuvette inspection efficiency and pass rates, making it a crucial tool for companies achieving high-standard quality control.

　　Core Functions:

　　Automatic Loading and Conveying: Cuvettes are automatically arranged and conveyed to the inspection station, reducing manual labor.

　　High-Definition Visual Inspection: Equipped with an industrial camera and specialized lighting, it performs high-precision inspections of cuvettes for appearance, dimensions, cracks, foreign matter, and burrs.

　　Intelligent Rejection System: Automatically identifies and rejects defective products, ensuring final product quality.

　　Fast Size Switching: Supports rapid switching between multiple sizes and specifications, maximizing applicability.

　　Data Traceability and Statistics: Displays test results in real time and stores data for quality tracking and process improvement.

　　Technical Features:

　　High-speed inspection, with a single machine capable of inspecting hundreds of cuvettes per minute;

　　High-precision positioning and camera algorithms ensure stable and reliable inspection accuracy;

　　Modular design allows for easy maintenance and expansion;

　　Utilizing a PLC and touchscreen human-machine interface, the machine offers simple operation, adjustable parameters, and visual status.

　　Compared to traditional manual spot checks, the automated visual inspection system for cuvettes not only significantly increases inspection speed and reduces labor costs, but also ensures consistent and high-precision inspection, comprehensively enhancing product quality control. For consumables manufacturers striving for high quality and efficiency, this equipment is an ideal choice for transitioning to intelligent production and achieving end-to-end quality control.

　　Equipment Details:

　　model number: GST-FYB001A

　　Sizes: L380cm*W340cm*H210cm

　　Weight: 1172kg

　　Power: 4KW

　　Production Capacity: 8,000 PCS/hour

　　Voltage: 380V

　　Core Components: Motor, CCD System

　　Customized Support: Yes
