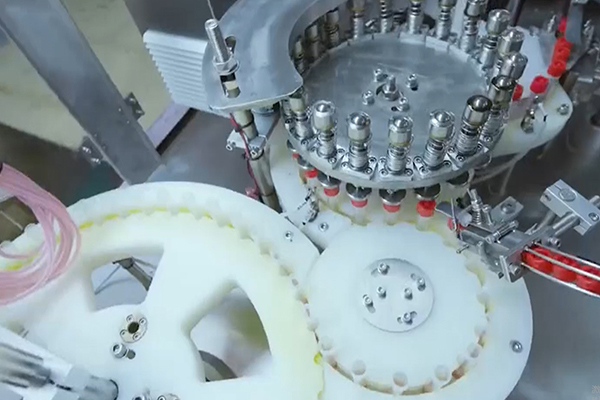

Reagent automatic filling machine This production line is composed of a disc positioning filling and capping machine and a horizontal labeling machine, which can automatically complete tube feeding, filling, capping, labeling and coding. It is mainly used in the reagent filling machine production line for packaging materials such as round bottles, bottles, centrifuge tubes, and cryopreservation tubes.

　　The technological characteristics of the reagent filling machine production line: the reagent filling machine can fill accurately, prevent dripping, and can not fill if there is no bottle. Reagent filling machine frequency conversion speed regulation, automatic display counting function. The whole line of reagent filling machines is designed according to GMP requirements.

　　The reagent filling machine production line can realize one-time filling and sealing of biochemical diagnostic reagents of different specifications and different bottles on the same machine, and can be connected with a specially designed self-adhesive labeling machine for production. Use the bottle holder (fixture) method to correct the positions of the bottle mouths of various specifications to the same height and the same working disc size. There is no need to replace any parts when changing specifications (if the cover size is the same).

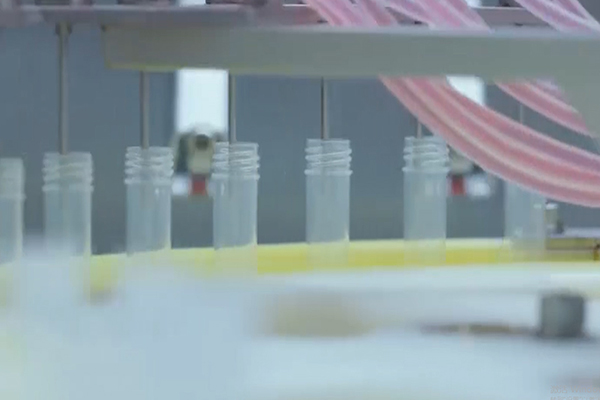

　　When the reagent filling machine is working, the filling needle should be dry and submerged (below the liquid level of the bottle) to prevent the liquid from foaming or soaring. "Follow-up filling technology" can realize one-time filling of large-dose biochemical diagnostic reagent products to ensure product volume and product output.

　　The host of the equipment is equipped with an overload protection mechanism. When the bottle is blocked or overloaded, the equipment will automatically stop to avoid damage to the equipment or personnel. The capping torque is controlled by precision servo technology, and it has the alarm function of no bottle, no cap, inverted bottle, bottle not in place, bottle missing, and stop filling operation at the same time. No bottle, no cap, no cap, the specially designed mechanical arm automatically takes and sends the cap, making the automatic cap of the equipment reliable and stable, and improving the quality of the cap.

　　The main machine is made of stainless steel SUS304# and aluminum alloy, and the filling needle is made of 316L material, which meets the requirements of GMP and packaging requirements of other industries, and has the function of equipment operation monitoring. The operating status of the key components of the equipment can be dynamically displayed on the man-machine interface, and the operator can see the operating status of the equipment at a glance, which is convenient for operation and maintenance. When alarming, in addition to sound and light alarm, the alarm position and alarm reason can also be dynamically displayed on the man-machine interface.

　　Automatic bottle caps and screw caps in the reagent filling machine production line. The whole production process only needs to empty the bucket manually. Improve work efficiency and reduce labor intensity. Boxes with empty bottles are stacked on pallets in the reagent filling machine. The empty bottles taken out from the unloading machine are sent to the bottle washing machine by another conveyor belt for disinfection and cleaning. After testing by the bottle testing machine, it meets the cleaning standard and enters the reagent filling machine.
