In the modern plastic products manufacturing industry, plastic pipe ultrasonic automatic welding machine, as a kind of efficient, precise and environmentally friendly welding equipment, is widely used in medical equipment, auto parts, home appliance manufacturing, packaging materials and other fields. It welds plastic pipes together through high-frequency ultrasonic vibration without the use of solvents, adhesives or other auxiliary materials, and can achieve a strong and beautiful welding effect in a short time. Compared with the traditional hot melt welding or bonding process, ultrasonic welding has the advantages of high efficiency, solid welding, no pollution, etc., has become an indispensable key equipment in the field of plastic products processing.

　　First, the working principle and structure of plastic pipe ultrasonic automatic welding machine

　　1. Working principle: plastic pipe ultrasonic automatic welding machine using ultrasonic high-frequency vibration principle, high-frequency electrical energy is converted into mechanical vibration energy, through the welding head (Horn) will be the vibration energy transfer to the plastic pipe welding parts. Under the action of high-frequency vibration and pressure, the welding part produces instant frictional heat, which makes the plastic molecules melt and fuse rapidly. After the vibration stops, the pipe cures rapidly during the cooling process, forming a solid welded joint.

　　2. Equipment structure composition, plastic pipe ultrasonic automatic welding machine is usually composed of the following core components:

　　Ultrasonic generator: the utility frequency (50/60Hz) into 20kHz, 35kHz or 40kHz high-frequency electrical energy, providing high-frequency vibration for welding.

　　Transducer (Transducer): electrical energy into mechanical energy, ultrasonic vibration through the realization of welding.

　　Welding head (Horn): ultrasonic energy is concentrated on the welding part to ensure welding precision.

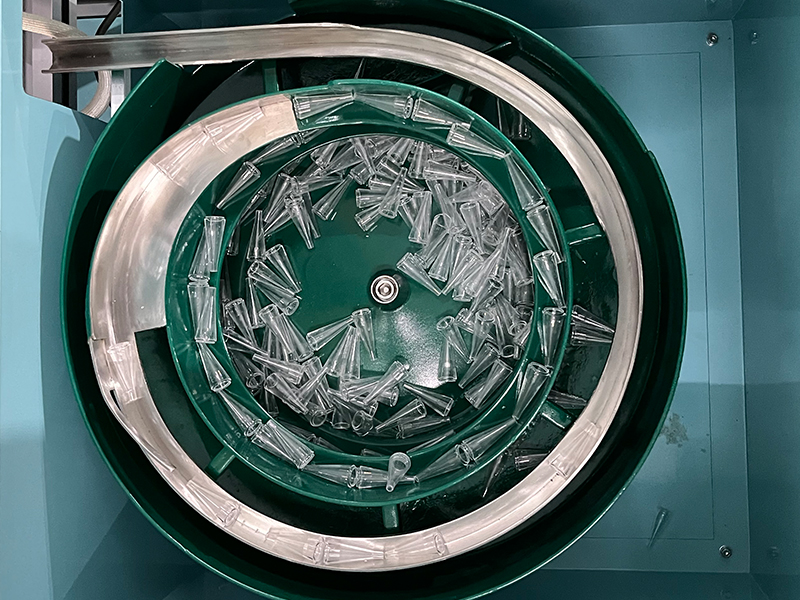

　　Work fixture and feeding system: automatically clamp the plastic pipe and control the welding position to ensure consistent welding precision.

　　Control system and touch screen: PLC or microcontroller control, can automatically adjust the welding time, pressure, amplitude and other parameters, to achieve fully automatic operation.

　　Second, the advantages of plastic pipe ultrasonic automatic welding machine

　　1. Efficient automatic production: realize fully automatic feeding, welding, picking up materials, greatly improve production efficiency. Each welding time is only 0.12 seconds, suitable for high-volume continuous production. With automatic assembly line or conveyor belt, unmanned production can be realized.

　　2. Firm and precise welding: ultrasonic welding will not damage the structure of the plastic pipe, the weld seam is flat and beautiful. High welding strength, not easy to crack, with excellent sealing and pressure resistance. It can ensure the welding position and dimensional accuracy is consistent, the error is controlled within ± 0.05mm.

　　3. Environmental protection and energy saving: no need to use adhesives, chemical solvents or auxiliary materials, environmental protection and pollution-free. Ultrasonic welding process without smoke and harmful gases, in line with environmental production requirements. Low power equipment, low energy consumption, suitable for long-term batch operation.

　　4. Easy operation and intelligent control: PLC intelligent control system, adjustable parameters, simple operation. Touch screen operation interface, welding time, power, amplitude and other parameters can be visualized. Real-time monitoring of welding quality can be realized to improve production stability and consistency. High welding precision, can meet the high standard welding requirements.

　　Third, the application fields of plastic pipe ultrasonic automatic welding machine

　　1. Medical device industry: the medical industry has high requirements for the sealing and cleanliness of plastic pipe welding. Plastic tube ultrasonic automatic welding machine can be used for infusion tubes, catheterization tubes, blood sampling tubes, guidewire sheaths and other medical devices for sterile welding. Firm welding, no overflow of glue, to ensure medical safety and health standards.

　　2. Automobile parts manufacturing: In the field of automobile manufacturing, plastic pipes are used for fuel pipes, cooling water pipes, vacuum pipes and other fluid transportation. Ultrasonic welding machine can ensure the sealing and pressure resistance of the weld to prevent fluid leakage. Realize automated batch welding and improve production efficiency.

　　3. Home appliances and daily necessities manufacturing: in the manufacture of home appliances, plastic pipe ultrasonic welding machine is widely used in air conditioning refrigerant pipe, electrical appliances water pipe, hose joints and other welding. Ensure welding strength, prevent water leakage and improve product life. Meet the requirements of pressure resistance and leakage prevention in the manufacture of home appliances.

　　4. Packaging and consumer goods industry: plastic tube ultrasonic automatic welding machine can be applied to food straws, liquid packaging hose automatic welding. No chemical residue after welding, in line with food-grade safety standards. Suitable for mass production, improve packaging efficiency.

　　Fourth, the plastic pipe ultrasonic automatic welding machine selection points

　　1. Welding frequency and power matching: choose the right frequency and power range (20kHz, 35kHz or 40kHz) to ensure welding strength and efficiency.

　　2. Welding accuracy and stability: Ensure that the equipment has a high-precision control system, welding error is small, to ensure welding consistency.

　　3. Degree of automation and productivity: purchase equipment with automatic feeding, testing and welding functions to improve production capacity and automation.

　　4. Brand and after-sales service: choose a well-known brand and high-quality after-sales service to ensure stable operation and maintenance of equipment.

　　Plastic pipe ultrasonic automatic welding machine with high efficiency, environmental protection, precision welding technology, in the medical, automotive, home appliances and packaging and other fields play an important role. In the future, with the continuous upgrading of intelligent and automation technology, the equipment will further help the plastic products manufacturing industry to efficient, accurate and green manufacturing direction.
